Would this be the right wiring for the regulator.
Positive / A live feed coming from ignition switch.
Negative / A wire run to earth / chassis. F / A feed run to the fuel gauge, then from the gauge to the petrol tank sender.



[Panky]

Are you looking to fit a voltage stabiliser so the feed to the instruments is a constant 10 volts? The item pictured is an alternator control box so I'm not sure it will do the same job.

​



[Cookie2017]

Thank you Mr P, it is a voltage stabilizer that I require to feed the instruments, could help me by telling me what I require, I have had to rewire the Ambulance and I am more mechanical than electrical



[Panky]

This is the original type

Smiths Gauges BR1308 Voltage Stabiliser BHA4602 for MGB & Negative Earth Cars | eBay

Note: price is per single stabiliser, insert photo shows back of the stabiliser wiring connectors.

www.ebay.co.uk

But when mine failed I fitted one of these years ago and it works great

Instrument Voltage Stabilizer / Stabiliser / Regulator (solid state) -597- | eBay

Find many great new & used options and get the best deals for Instrument Voltage Stabilizer / Stabiliser / Regulator (solid state) -597- at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk

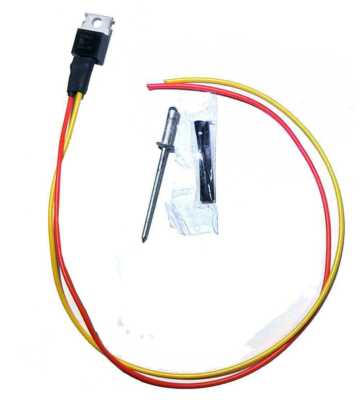

Or one of these

Semiconductor Voltage Stabilizer- GT6 Spitfire Stag 250 | eBay

It connects directly to the original wiring of many cars including MGB/C, Midget, Spitfire and many more. Adaptor leads are provided for other applications. The CCVS1 stabilizer is designed for. The original and the best!

www.ebay.co.uk



[Cookie2017]

Thanks Mr P, I now know what I am looking for.



[S0updragon]

I have replaced with original type and then the little electronic one. I have also used a 9v battery when I was waiting for a replacement to check the fuel going on holiday.
